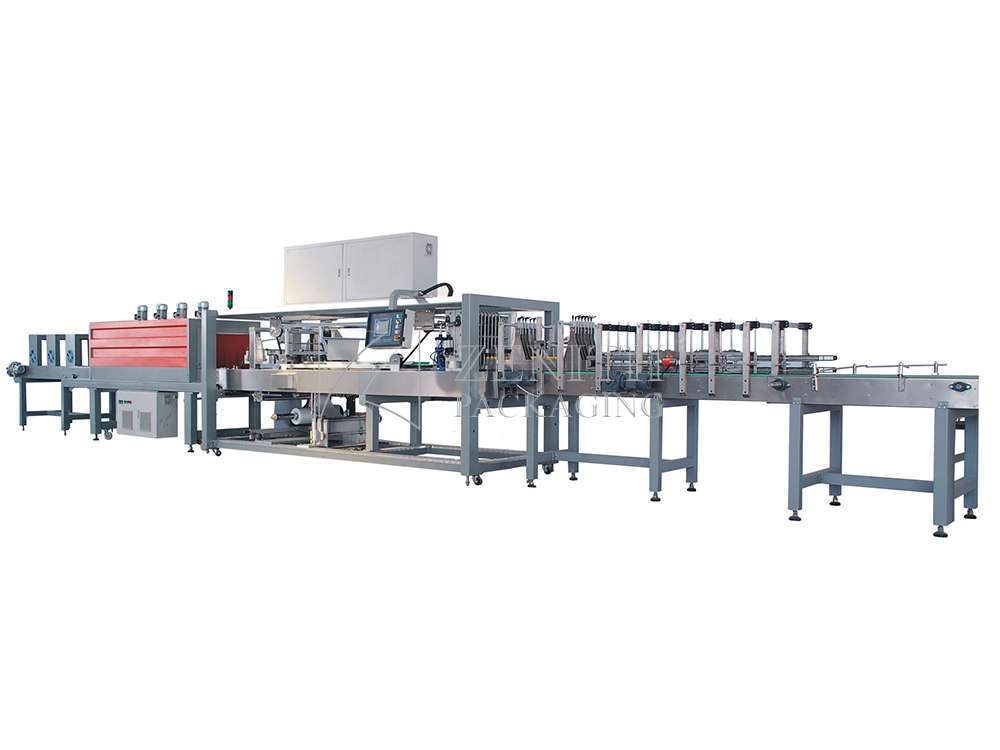

Automatic Plastic Film Packing Machine
Automatic shrink packing machine is designed for different type production lines. In water production line ,it is very important and in last step before entry warehouse. Shrink packing machine use film to to cover the bottles and entry shrink tunnel for shrinking. Shrink packing machine use touch screen operation, fast parameter setting, convenient for operators, suitable for various production line. Shrink packing machine speed from 10PPM up to 120PPM normally
Product Video
Product Description
The full automatic PE film shrink packing machine is composed of automatic machines for packing plastic, metal, cardboard or glass containers. Depending on the model chosen, they can make packs in film only, cardboard pad + film, tray only, cardboard tray + film. The shrink packaging machine can achieve an output rate up to 150 packs per minute, depending on the machine model and on the product to be packaged. Pack combination can vary according to the container shape, capacity and size. In general, the most requested combination are: 2*2, 3*2, 4*3 and 6*4. All shrink packaging machine are equipped with an electronic product grouping system and are available in single, double depending on the customer’s requirements.
Product Details
Technical Parameter
| Model | Sealing and Cutting Temperature (℃) | Shrinking Temperature (℃) | Max Package Dimension (mm) | Capacity(ppm) | Film Width (mm) | Film Thickness (mm) | Dimension(mm) |
|---|---|---|---|---|---|---|---|
| SPM-6535 | 140-160 | 200-280 | 600*400*350 | 10 | ≤600 | 0.06-0.12 | 5500*3200*2100 |
| SPM-15 | 140-160 | 200-280 | 600*400*350 | 15 | ≤600 | 0.06-0.12 | 6300*3200*2100 |
| SPM-25 | 190-230 | 200-280 | 600*400*350 | 20 | ≤600 | 0.06-0.12 | 13840*1100*2100 |
| SPM-30 | 190-230 | 200-280 | 460*280*350 | 25 | ≤600 | 0.06-0.12 | 16685*1530*2500 |
| SPM-35 | 190-230 | 200-280 | 460*280*350 | 30 | ≤600 | 0.06-0.12 | 17685*1530*2500 |
| SPM-45 | 190-230 | 200-280 | 460*280*350 | 40 | ≤600 | 0.06-0.12 | 17685*1530*2500 |
Factory
1.Professional manufacturer of beverage filling lines.
2.3000 square meter production workshop.
3.More than 20 professional engineers at your service.
4.More than 30 Production Lines Over 20000BPH.
5.Delivering over 100 high-quality production lines globally.
6.Inherited the best technology in the Chinese packaging industry
After-sales Service
1. Immediately engineer sending after visa and ticket ready
2. Over 10-year experienced engineers for machine installation and training
3. 7 days /week online for customer’s trouble shooting after installation
4. 1000㎡ spare parts warehouse ensure quick delivery within 12hours for urgent spare parts replacement
