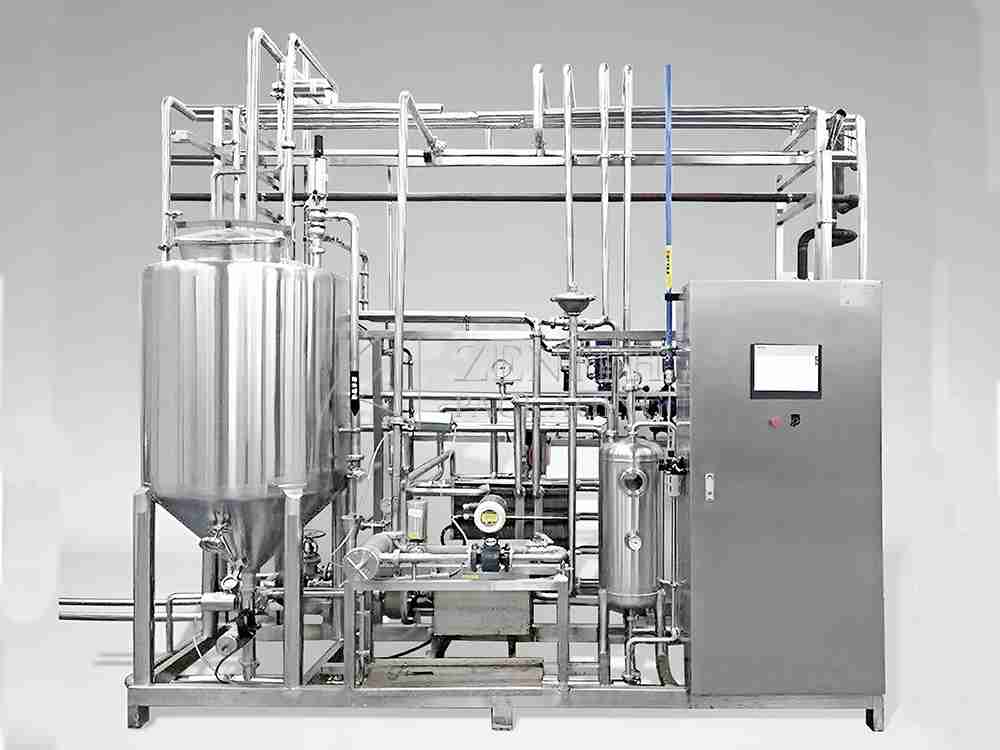

Automatic Plate Type UHT Sterilizer
Automatic plate type uht sterilizer is suitable for the Pasteur, super Pasteur and ultra high temperature sterilization of liquid materials, such as milk, fruit juice, tea, bear and health care beverage. Through the sterilization of this equipment, the quality guarantee period can be extended. In addition, the combined system design of single section, double sections and multi sections can be done according to the customer requirements for sterilization, heat preservation and cooling.
Product Video
Product Description
1. High heat efficiency, 90% of heat can be reused after the product be processed.
2. Temperature difference between the product and the heating medium is small, so the heating is gentle.
3. It is of high degree automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps; all the procedures are recorded and controllable.
4. It is of precise and reliable sterilizing temperature control; all the affecting factors such as steam pressure, steam flow rate, product flow rate are all controllable.
5. Adopts advanced polish procedure, can perform fully cleaning, self sterilizing ensures the system at aseptic state.
6. The system is of high reliable, main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all of world known brands.
Product Details
Technical Parameter
| Model Name | Plate-type pasteurizer | Plate-type Ultra pasteurizer | Plate-type Superhigh Temperature Sterilizer |
|---|---|---|---|
| Production Capacity (t/h) | 1-10 | 1-10 | 1-10 |
| Material Inlet Temperature (℃) | 5 | 5 | 5 |
| Material? Sterilization Temperature (℃) | 85 | 120 | 135 |
| Material Retention Time (S) | 16 | 16 | 4 |
| Material Inlet Temperature (℃) | 4 | 4 | 25 |
Factory
1.Professional manufacturer of beverage filling lines.
2.3000 square meter production workshop.
3.More than 20 professional engineers at your service.
4.More than 30 Production Lines Over 20000BPH.
5.Delivering over 100 high-quality production lines globally.
6.Inherited the best technology in the Chinese packaging industry
After-sales Service
1. Immediately engineer sending after visa and ticket ready
2. Over 10-year experienced engineers for machine installation and training
3. 7 days /week online for customer’s trouble shooting after installation
4. 1000㎡ spare parts warehouse ensure quick delivery within 12hours for urgent spare parts replacement
