Edible Oil Filling Machine
GYHW series features weighing sensors with high accuracy and is special for filling of edible oil, jam, honey and other viscous products, capping and equipped with rotary transmission, PLC and frequency adjuster in speed, featuring reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for edible oil and viscous product producers.
Product Video
Product Description
- Compact structured, good-looking, easy to operate and highly automated.
- Parts with contact with material are all made of stainless steel of food-grade, no dead angles and easy to clean up.
- Filling volume is controlled with film valves to ensure accurate filling.
- High-speed and highly accurate filling valves with weighing sensors ensure no loss of liquid at high speed.
- Liquid buffer element specially designed inside filling valves can eliminate the cutting affection and wallop between liquid and container, easy to eliminate the air bubble in material.
- Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
- Highly effective cap sorting and feed in system is protective for feed in and cap absence.
- Equipped with overload system to safeguard machine and operators.
- Equipped with cap absence detector and bottle jam-up detector, which could stop the monoblock in that case.
- Equipped with output calculating function for monoblock.
- Main electronic components (touch screen, PLC and frequency inverter) are imported products.

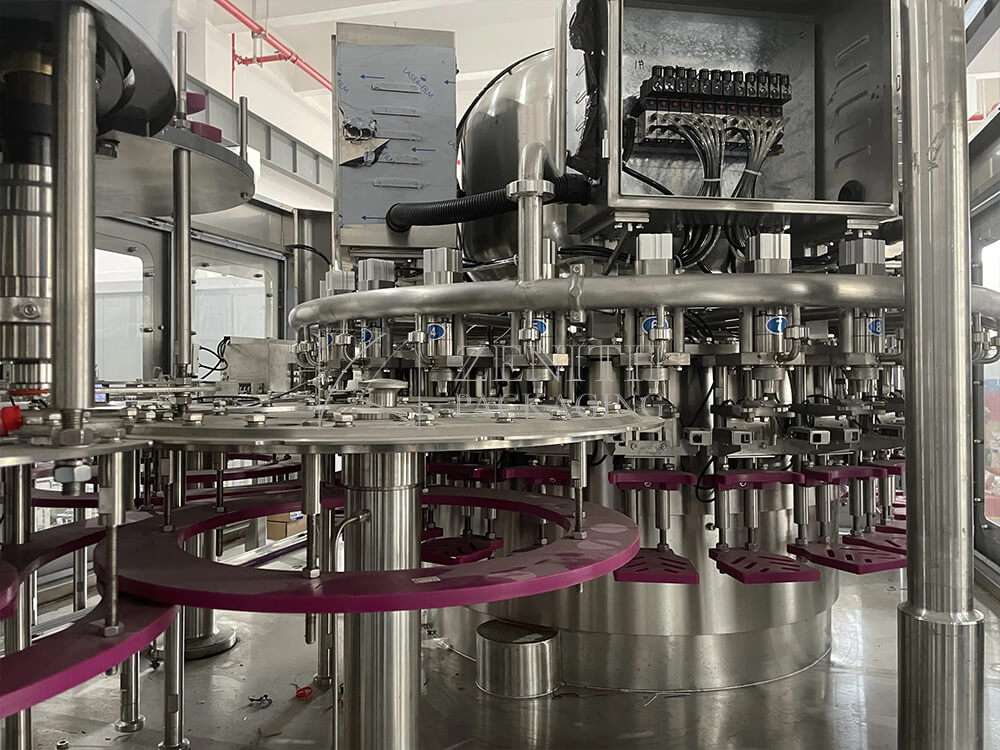

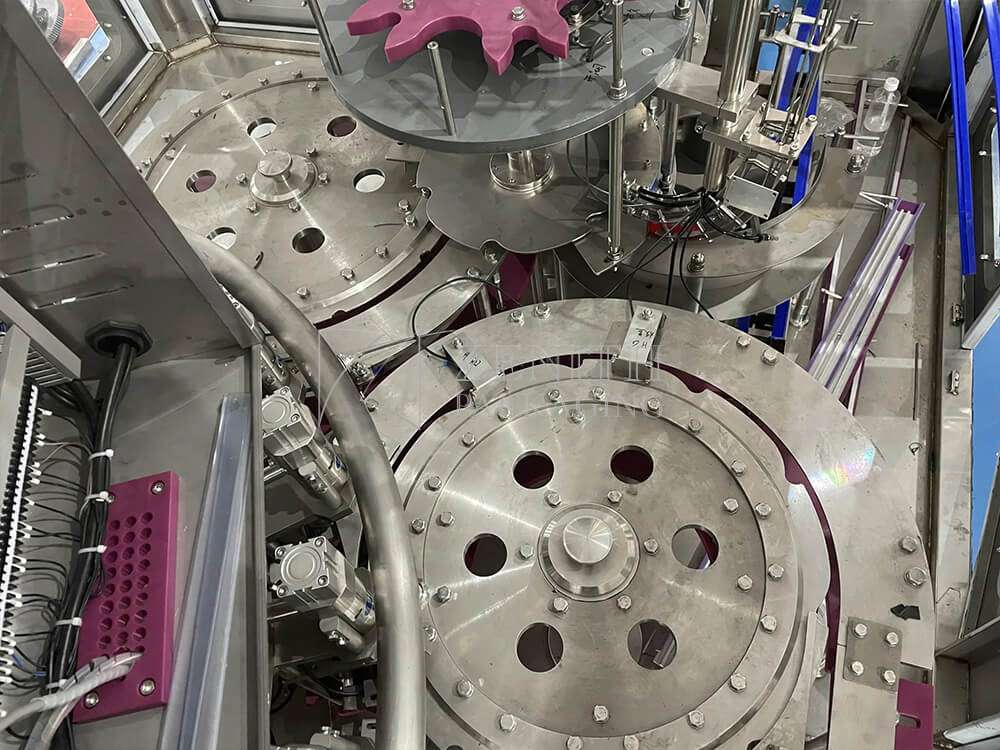

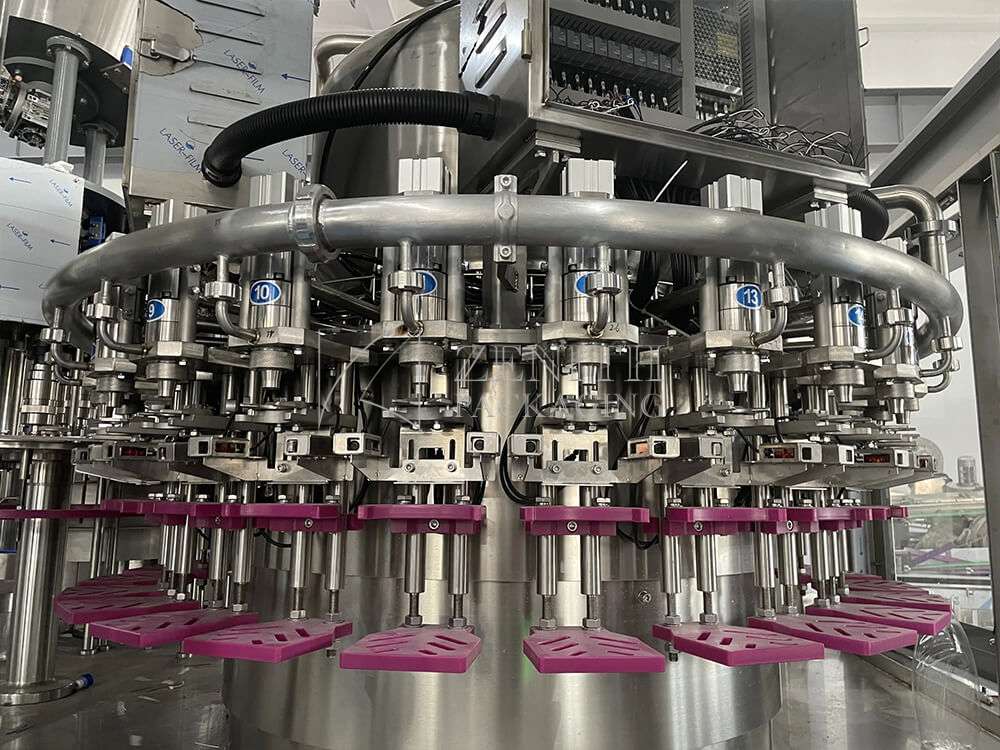

Product Details
Technical Parameter
| Model | Filling Heads | Capping Heads | Capacity (Based on 500ml) | Dimension (mm) | Power (KW) |
|---|---|---|---|---|---|
| GYH12/5 | 12 | 5 | 3500 | 1980*1760*2700 | 1.5 |
| GYH20/5 | 20 | 5 | 6000 | 2200*2700*2700 | 1.5 |
| GYH32/6 | 32 | 6 | 10000 | 2950*3000*2700 | 3.0 |
Factory
1.Professional manufacturer of beverage filling lines.
2.3000 square meter production workshop.
3.More than 20 professional engineers at your service.
4.More than 30 Production Lines Over 20000BPH.
5.Delivering over 100 high-quality production lines globally.
6.Inherited the best technology in the Chinese packaging industry
After-sales Service
1. Immediately engineer sending after visa and ticket ready
2. Over 10-year experienced engineers for machine installation and training
3. 7 days /week online for customer’s trouble shooting after installation
4. 1000㎡ spare parts warehouse ensure quick delivery within 12hours for urgent spare parts replacement
