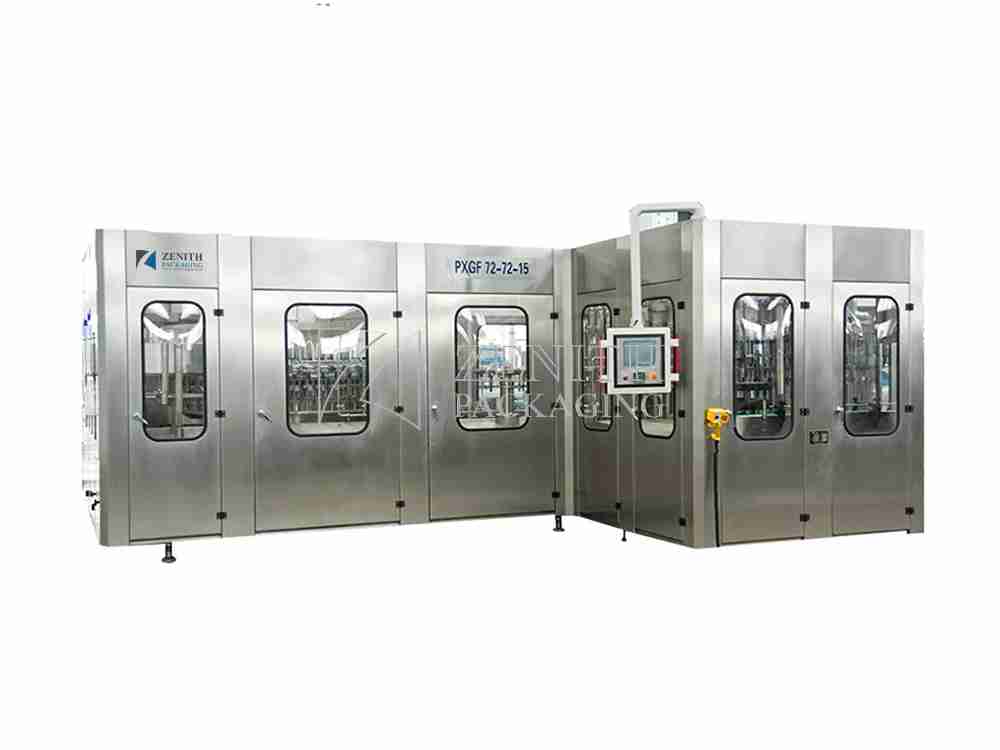

Glass Bottle Beer Filling Machine
This Machine mainly used in the beer filling operations,the three function of bottle washing,filling and capping are composed in one body of the machine ,the whole process is automatic ,it is conveniently turnked to adjust the machine to fill various types of bottles ,the filling operation is faster and more stable due to the advanced Germany filling valve technology ,The famous brand programeed controller (PLC) is adopted to control the machine runs automatically .it is a ideal perferred equipment for beverage makers .
Product Video
Product Description
1. Bottles transmission adopts bottlenecks clamping technology, no need to adjust the equipment height when changing bottle volume, simply replace guide plate, thumb wheel that related to the bottle diameter and mouth.
2. Valve opening device is driven by the cylinder; open the valve in time according to the signal, movements are accurate and reliable.

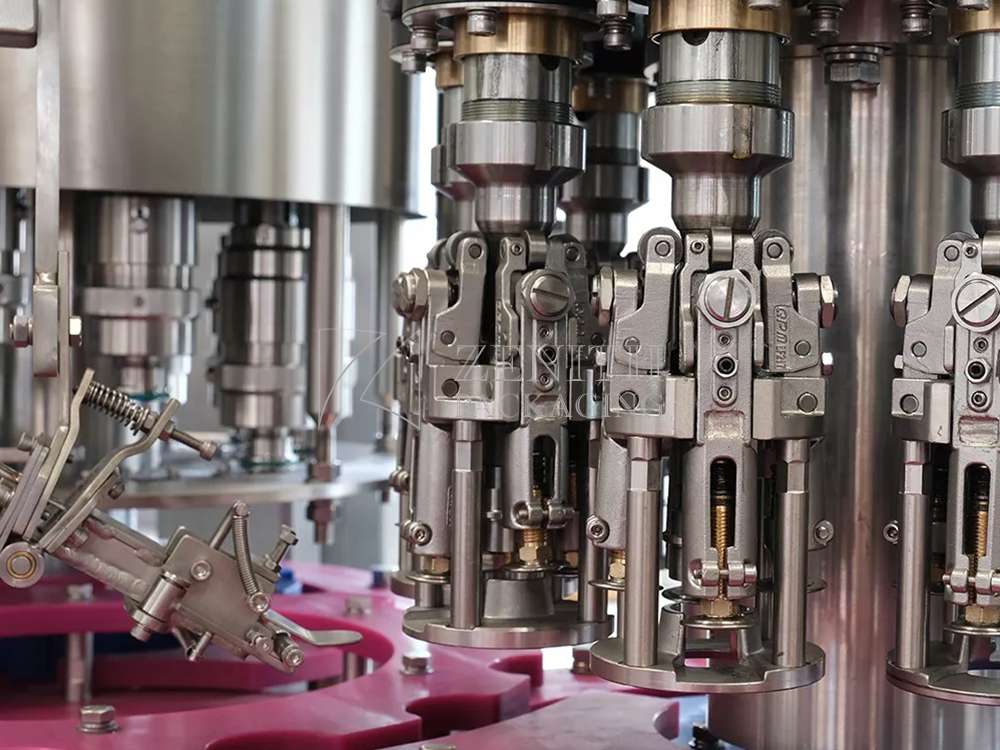

3. High-speed, high-volume, high precision filling valve, filling fast, accurate and non-liquid fluid loss.
4. Using deflection regulating valve, continuous control of fluid materials flow, so that hydraulic cylinder to maintain a smaller level fluctuations, to ensure filling accuracy
5. Equipped with CIP circuit and control procedures, equipment is cleaned in place.

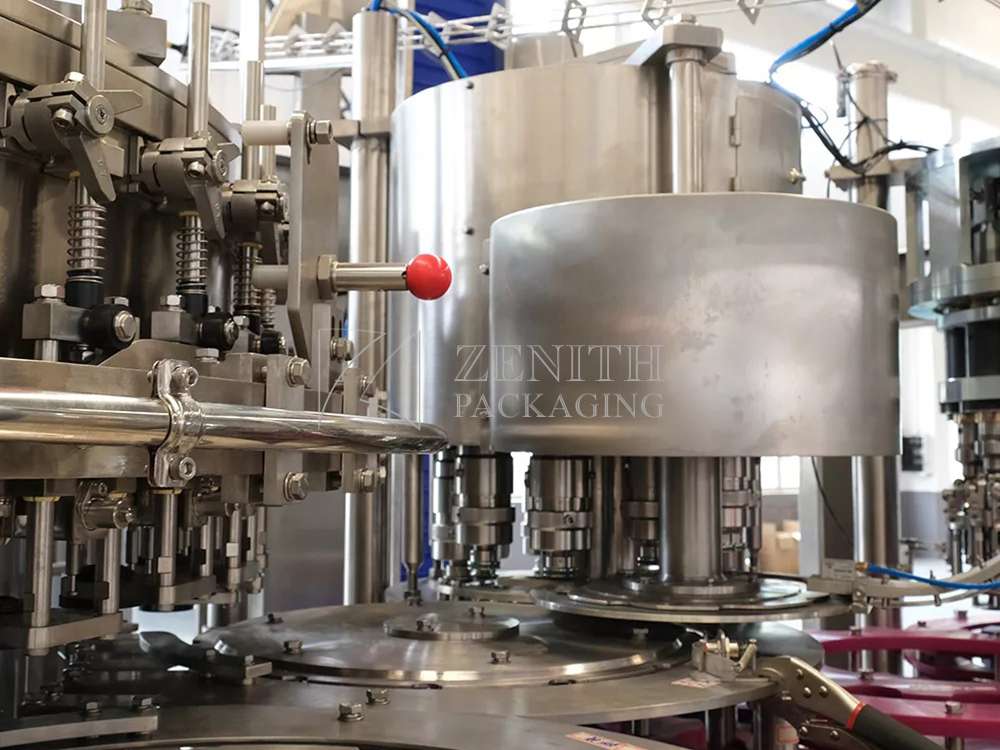

6. Capping head adopts constant magnetic torque device to ensure the seal of quality, and will not damage caps.
7. With complete overload protection device, which can effectively protect the equipment and the operator’s safety.
8. Main electrical components (touch screen, PLC, inverter, etc.) are imported brand-name products, OMRON, MITSUBISHI, SCHNEIDER,etc
9. Pneumatic system components are used well-known brand name products SMC/FESTO.

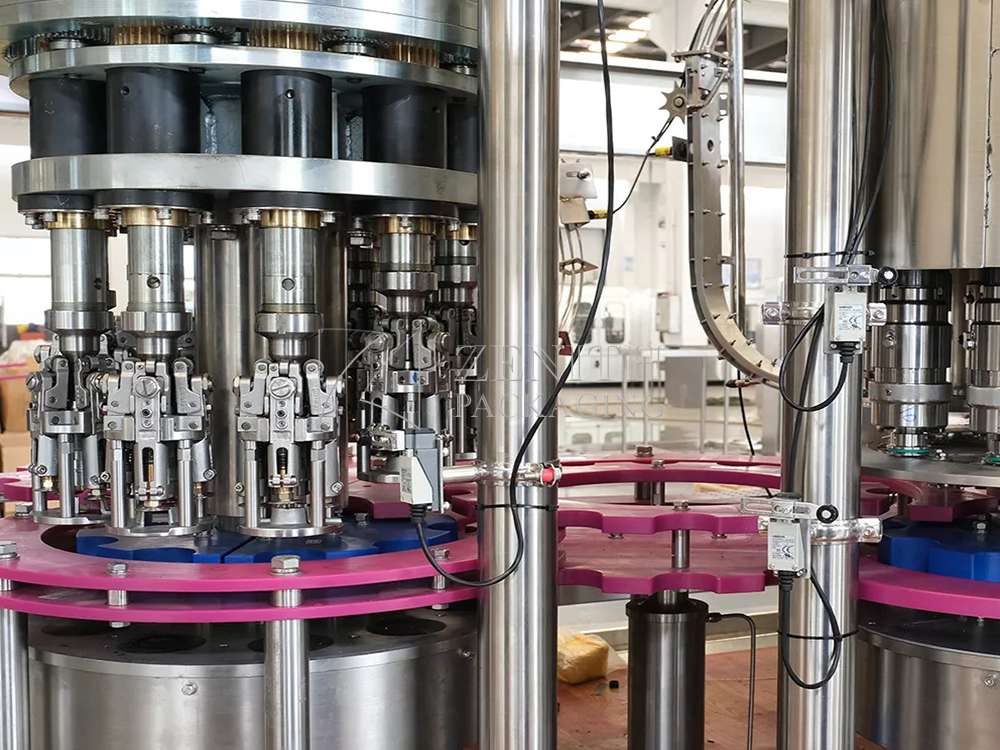

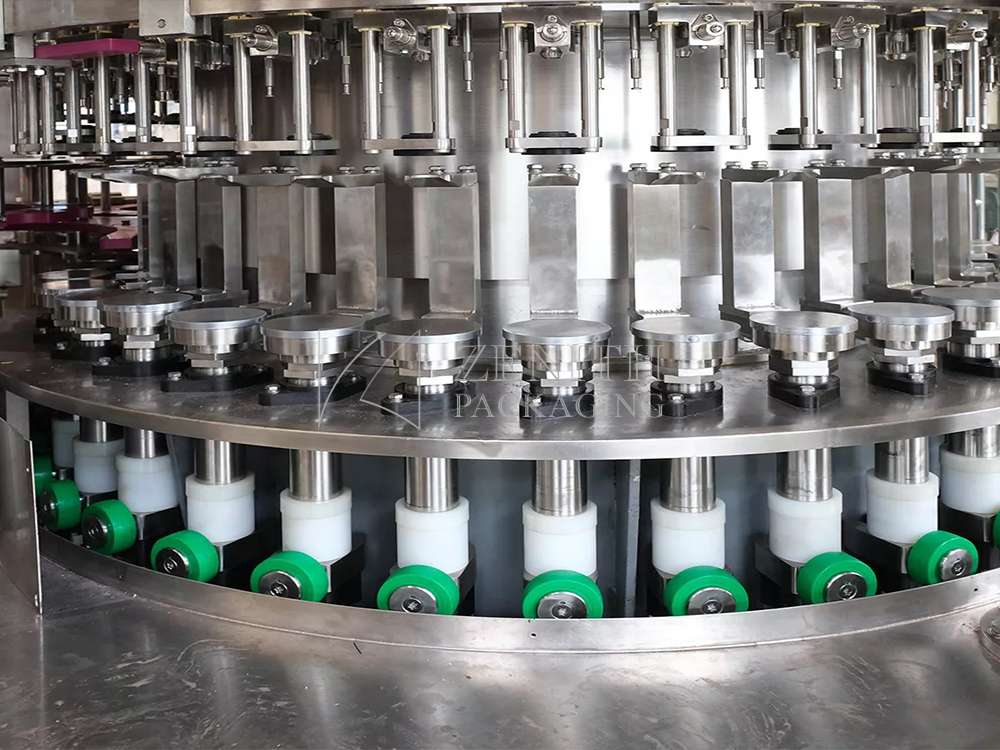

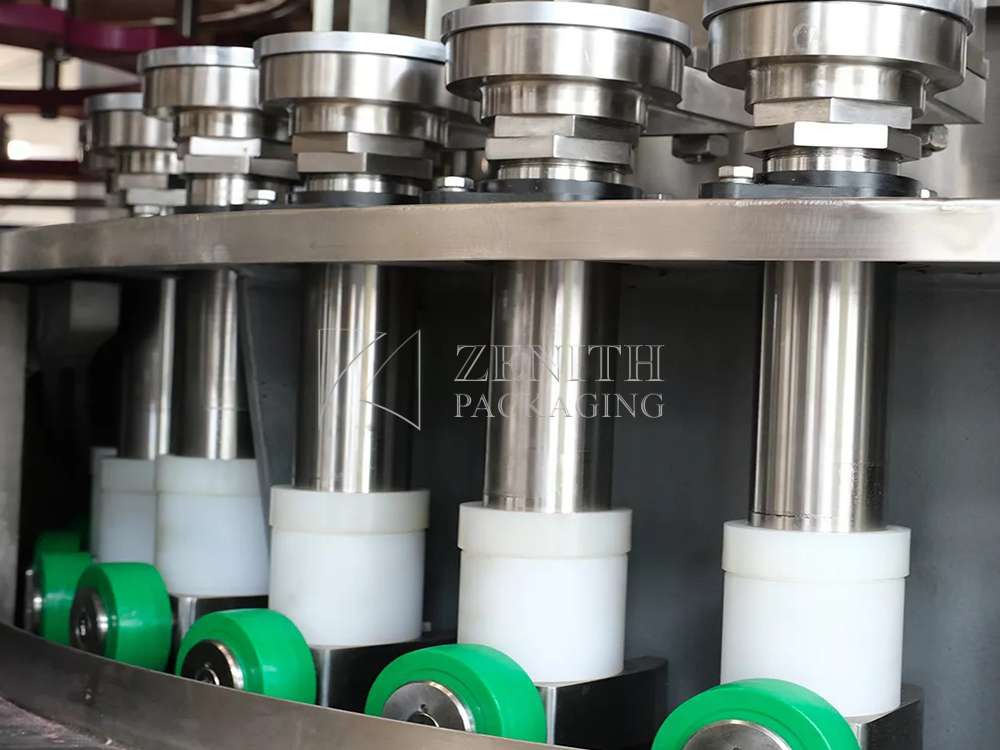

Product Details
Technical Parameter
| Model | Washing Heads | Fillingh Heads | CappingHeads | Capacity (Based on 500ml) | Bottle Diameter (mm) | Bottle Height (mm) | Dimension(mm) | Power(KW) | |
|---|---|---|---|---|---|---|---|---|---|
| DXGF14/12/5 | 14 | 12 | 5 | 4000 | 50-110 | 186-350 | 2360*1770*2700 | 1.5 | |
| DXGF16/16/5 | 16 | 16 | 5 | 5500 | 50-110 | 186-350 | 2760*2060*2700 | 2.2 | |
| DXGF24/24/8 | 24 | 24 | 8 | 8000 | 50-110 | 186-350 | 2800*2230*2700 | 3.0 | |
| DXGF32/32/8 | 32 | 32 | 8 | 10000 | 50-110 | 186-350 | 3550*2650*2700 | 4.0 | |
| DXGF40/40/10 | 40 | 40 | 10 | 14000 | 50-110 | 186-350 | 4360*3300*2700 | 7.5 | |
| DXGF50/50/15 | 50 | 50 | 15 | 18000 | 50-110 | 186-350 | 4720*3545*2700 | 7.5 | |
| DXGF60/60/15 | 60 | 60 | 15 | 24000 | 50-110 | 186-350 | 5770*5288*2700 | 11.0 | |
| DXGF72/72/18 | 72 | 72 | 18 | 30000 | 50-110 | 186-350 | 6540*4800*2700 | 11.0 | |
| DXGF80/80/22 | 80 | 80 | 22 | 36000 | 50-110 | 186-350 | 7800*6380*2700 | 13.0 |
Factory
1.Professional manufacturer of beverage filling lines.
2.3000 square meter production workshop.
3.More than 20 professional engineers at your service.
4.More than 30 Production Lines Over 20000BPH.
5.Delivering over 100 high-quality production lines globally.
6.Inherited the best technology in the Chinese packaging industry
After-sales Service
1. Immediately engineer sending after visa and ticket ready
2. Over 10-year experienced engineers for machine installation and training
3. 7 days /week online for customer’s trouble shooting after installation
4. 1000㎡ spare parts warehouse ensure quick delivery within 12hours for urgent spare parts replacement
