Glass Bottle Water Filling Machine
Zenith Mineral water filling machine strictly follows Chinese National GB/T 21903-2008, that the filling machine needs to meet during the production process, including safety, stability, operability, production efficiency, and other aspects. The detailed measurement and calculation methods for process parameters of the mineral water filling machine, including filling volume, filling time, filling speed, filling accuracy, are introduced. The specific steps and regulations for inspecting the filling machine, including equipment inspection, production inspection, periodic inspection, are also provided. At the same time, the standard also specifies the precautions and maintenance requirements for the use of the filling machine.
Product Video
Product Description

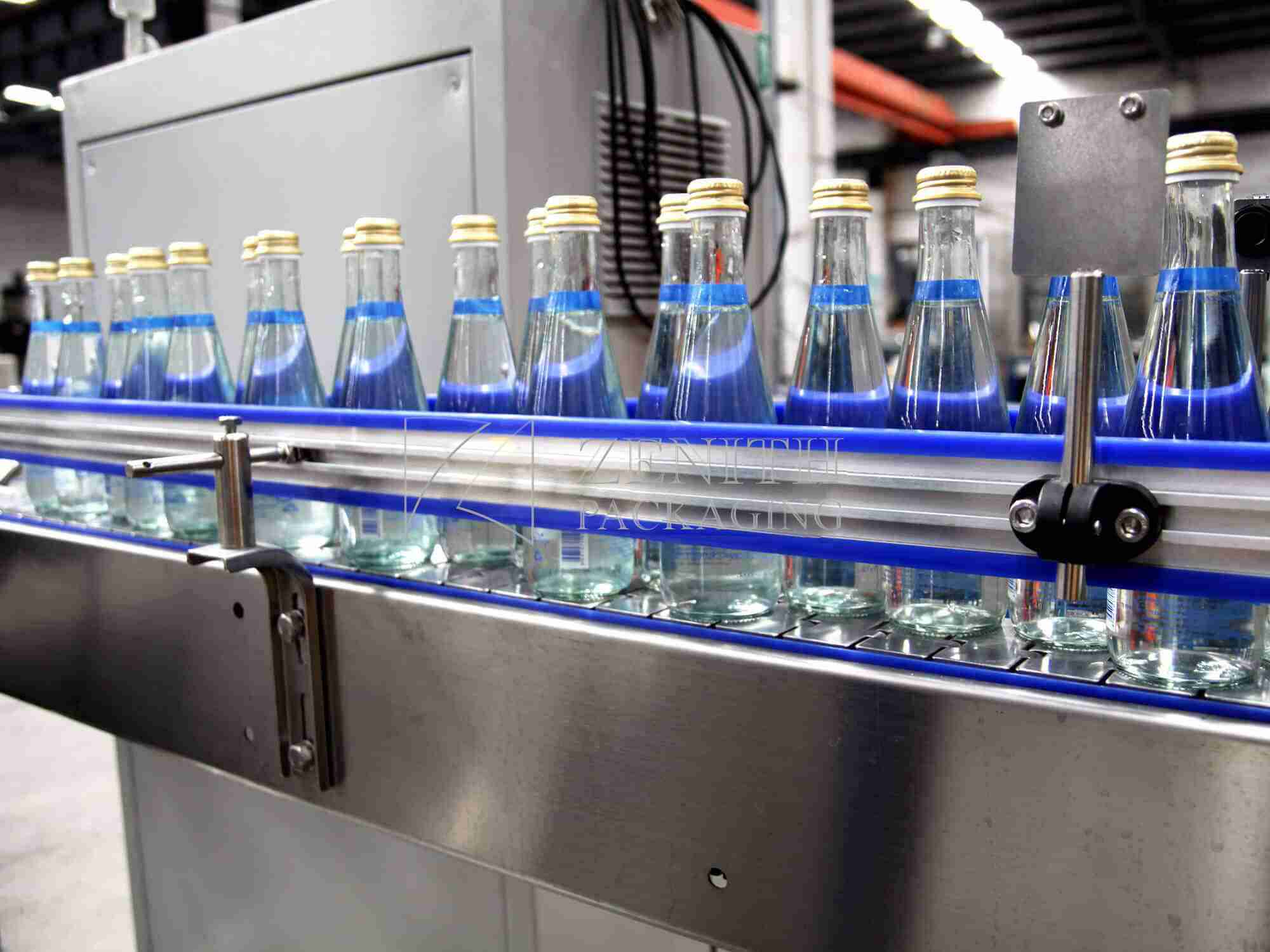

- This glass bottle filling machine is for filling pure water into glass bottle, capacity can be 10000 bottled water per hour. It is suitable for glass bottle with aluminum caps
- The water filling machine equipped with a flushing nozzle, with the flushing nozzle, you can clean the machine conveniently.

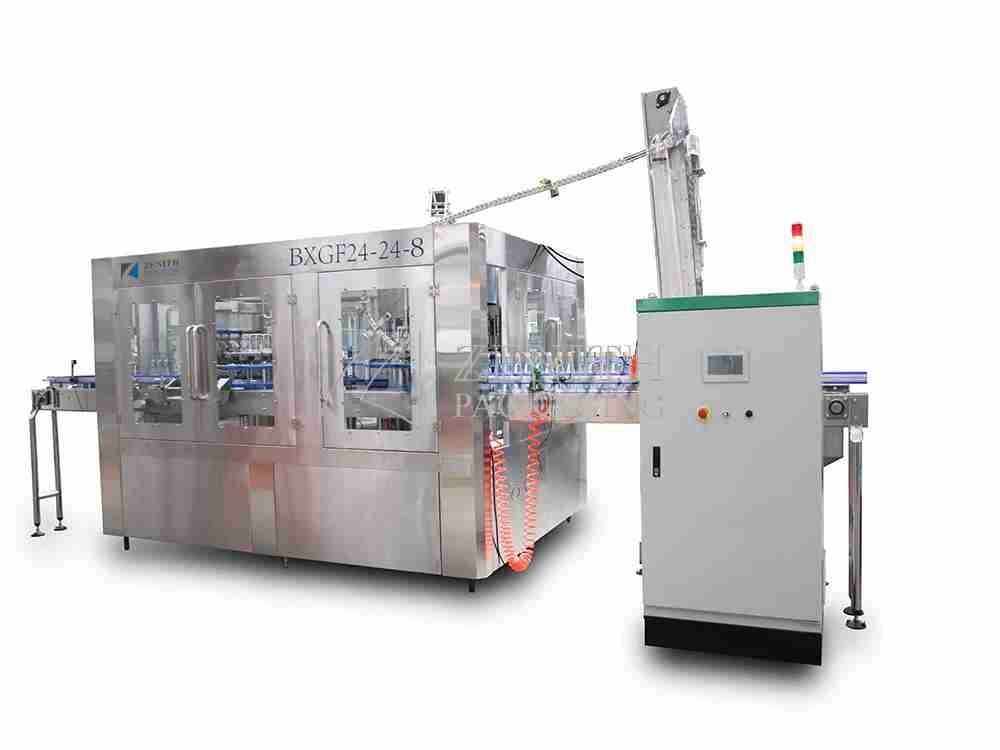

- The electric control cabinet is equipped with touch screen and warning light. You can easily operate the machine with the touch screen. Once any problem occurs, the warning light will flash to remind the staff.

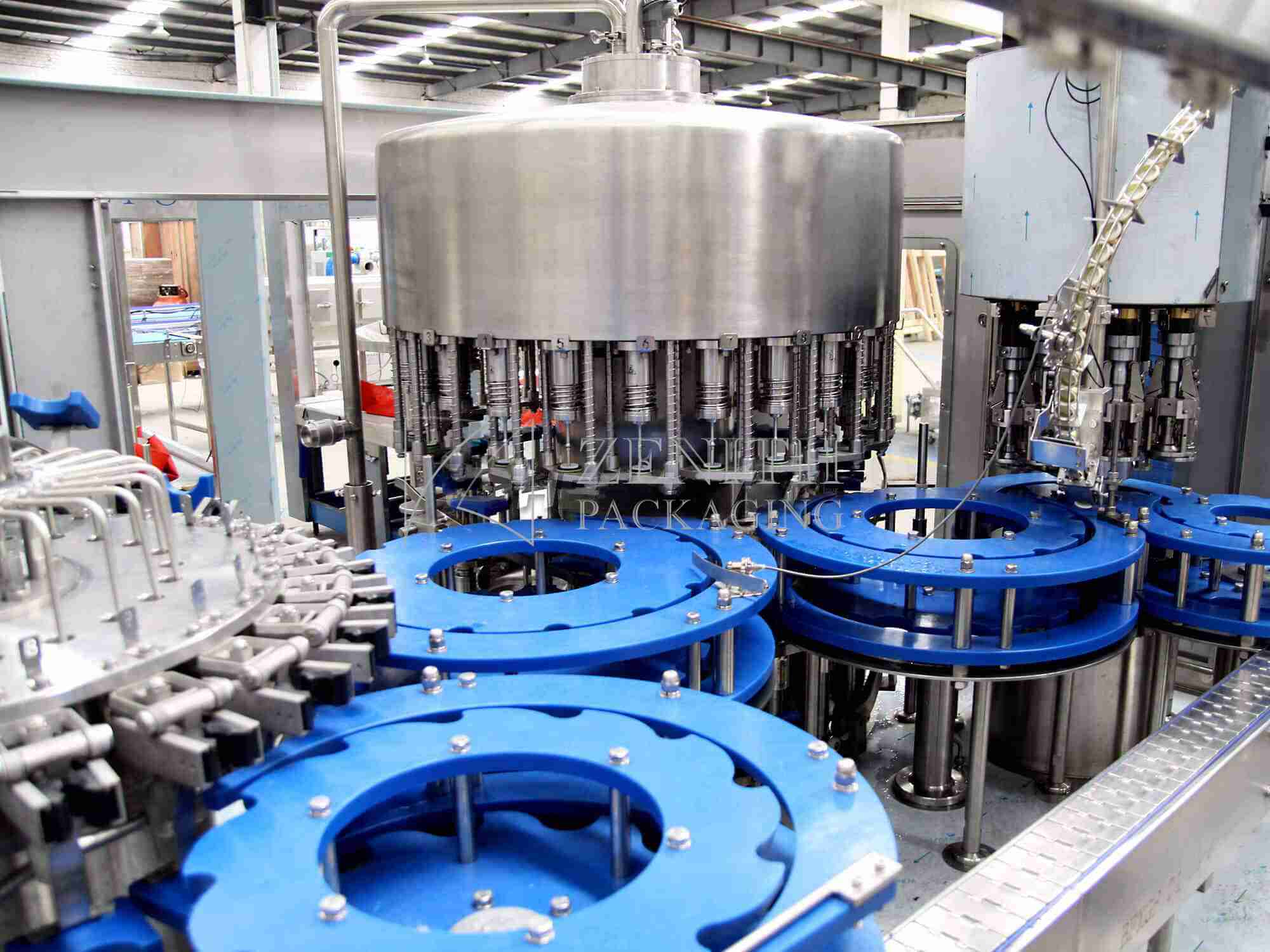

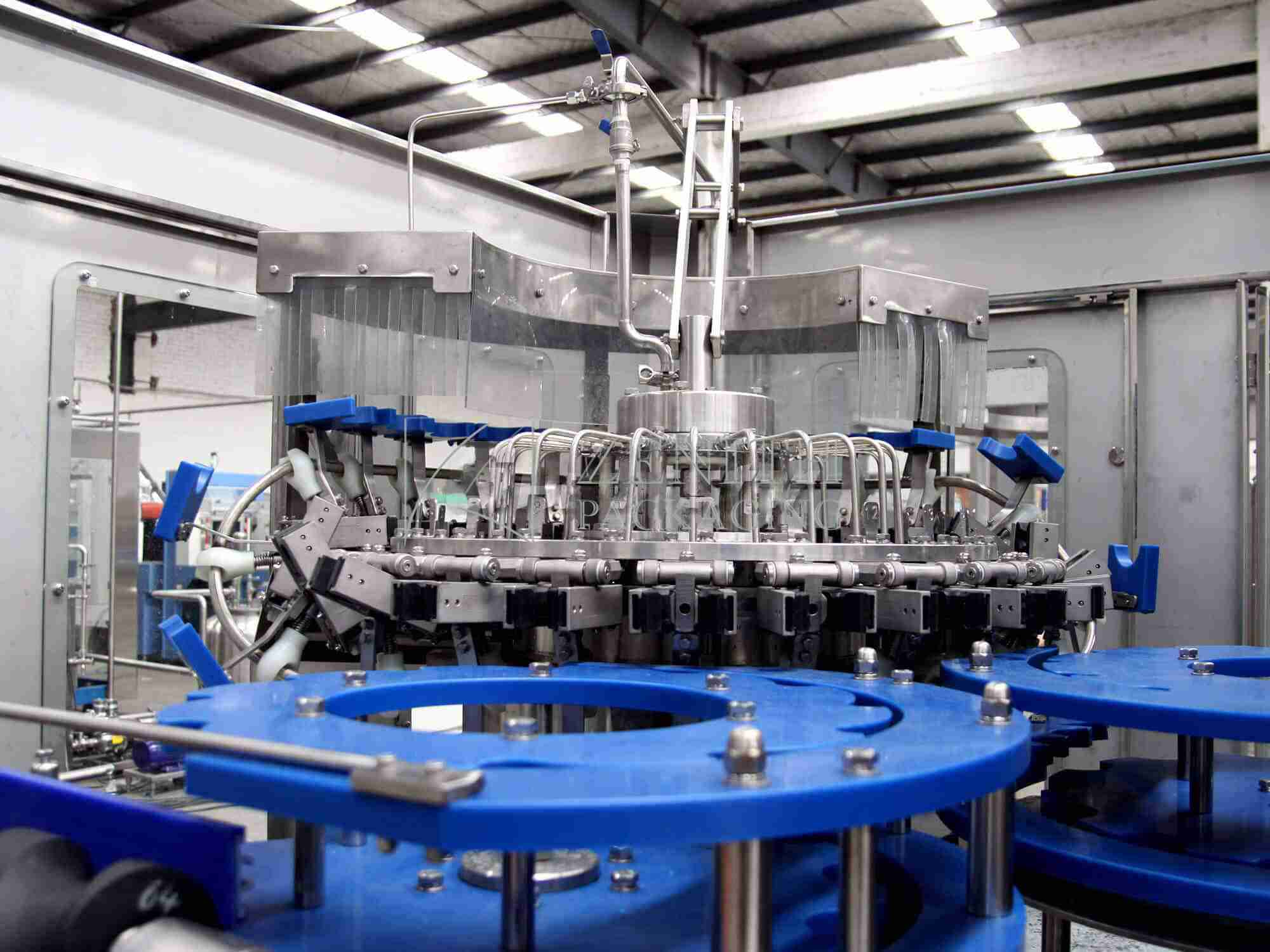

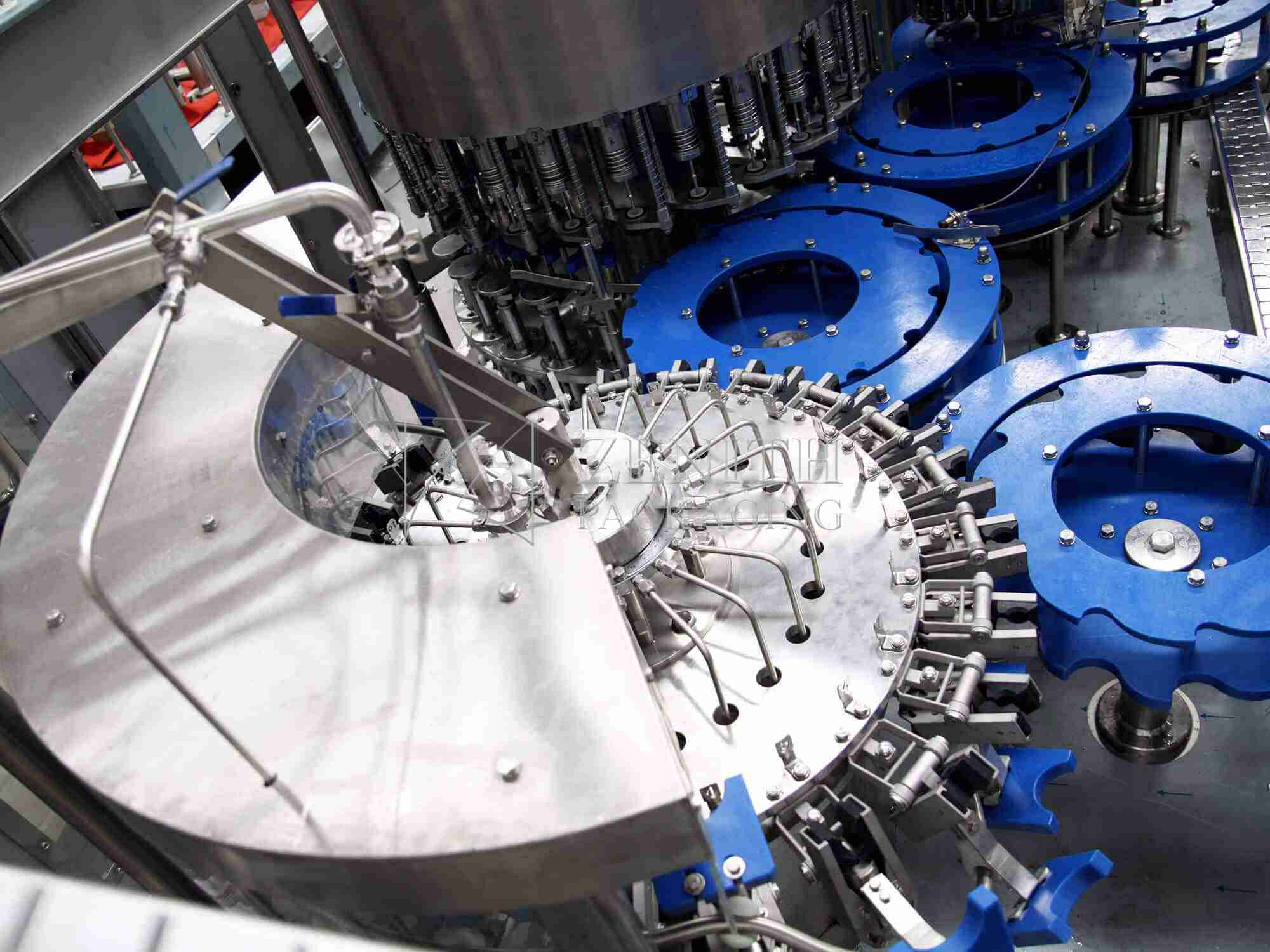

- The water filling machine integrates washing filling and capping 3 part, with cap elevator.

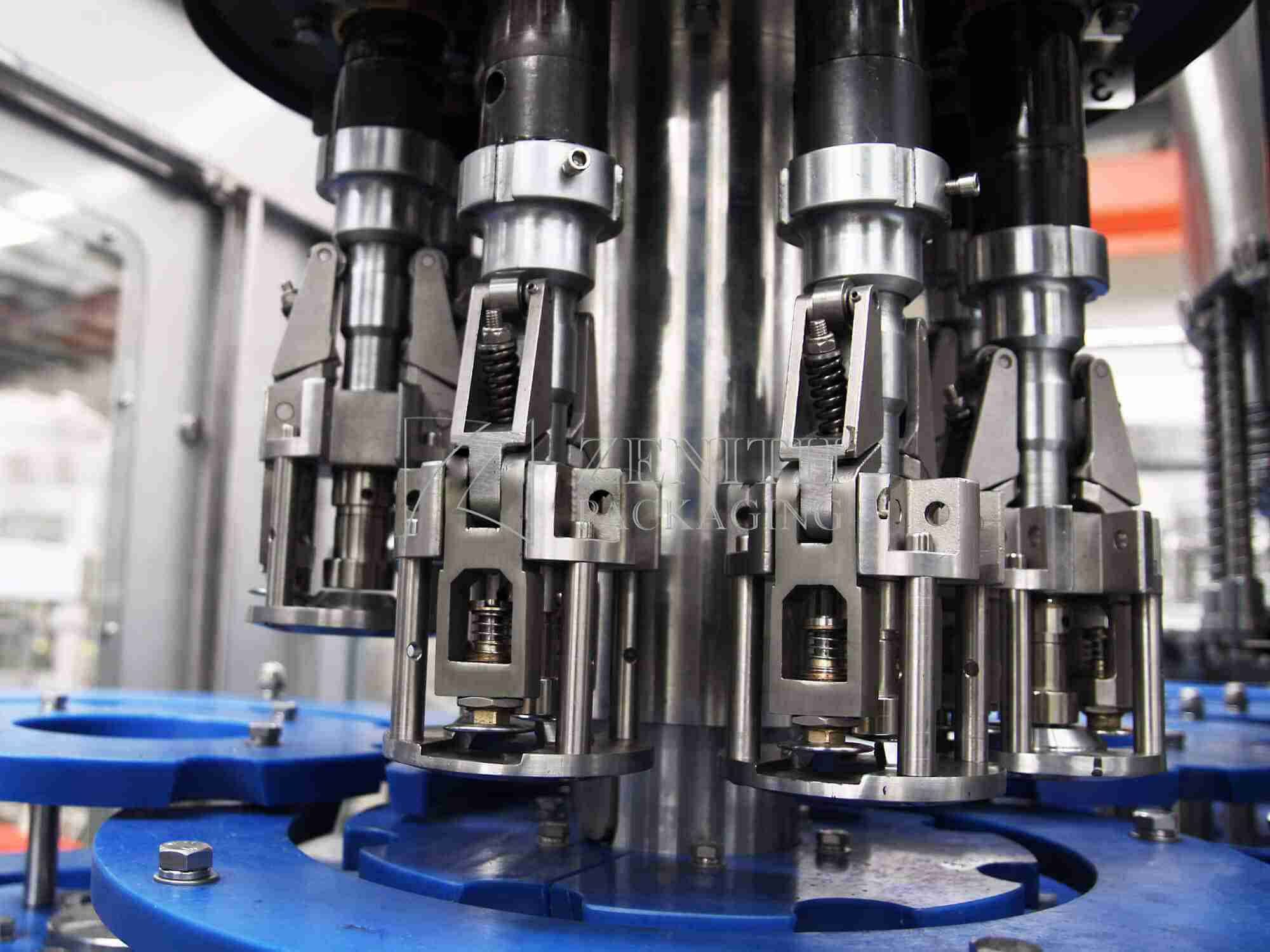

- All the machine are made of high quality sus304, the filling valve is made of sus316
6.The drinking water filling machine is fully automatic.
Product Details
Technical Parameter
| Model | XGF14-12-5 | XGF16-16-5 | XGF18-18-6 | XGF24-24-8 | XGF32-32-8 | XGF40-40-10 | XGF50-50-12 |
|---|---|---|---|---|---|---|---|
| Washing Heads | 14 | 16 | 18 | 24 | 32 | 40 | 50 |
| Filling Heads | 12 | 16 | 18 | 24 | 32 | 40 | 50 |
| Capping Heads | 5 | 5 | 6 | 8 | 8 | 10 | 12 |
| Capacity (b/h) | 5000 | 8000 | 10000 | 12000 | 15000 | 20000 | 26000 |
| Power (kw) | 1.5 | 2.2 | 2.2 | 3 | 3 | 7.5 | 9 |
| Dimensions (mm) | 2200*1550*2450 | 2850*2450*2450 | 2910*2150*2450 | 2850*2200*2450 | 3430*2630*2450 | 4300*2930*2450 | 5000*3840*2450 |
| Weight | 2000 | 2400 | 2500 | 4200 | 6000 | 7000 | 9000 |
| Voltage | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
| Suitable Bottle Shape | circular, square, customized | circular, square, customized | circular, square, customized | circular, square, customized | circular, square, customized | circular, square, customized | circular, square, customized |
| Suitable caps | plastic screw cap | plastic screw cap | plastic screw cap | plastic screw cap | plastic screw cap | plastic screw cap | plastic screw cap |
| Bottle Diameter(mm) | 50-90 | 50-90 | 50-90 | 50-90 | 50-90 | 50-90 | 50-90 |
| Bottle Height(mm) | 150-310 | 150-310 | 150-310 | 150-310 | 150-310 | 150-310 | 150-310 |
| Compressed Air Pressure(Mpa) | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 |
| Washing Medium | aseptic water | aseptic water | aseptic water | aseptic water | aseptic water | aseptic water | aseptic water |
| Washing pressure(MPA) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
Factory
1.Professional manufacturer of beverage filling lines.
2.3000 square meter production workshop.
3.More than 20 professional engineers at your service.
4.More than 30 Production Lines Over 20000BPH.
5.Delivering over 100 high-quality production lines globally.
6.Inherited the best technology in the Chinese packaging industry
After-sales Service
1. Immediately engineer sending after visa and ticket ready
2. Over 10-year experienced engineers for machine installation and training
3. 7 days /week online for customer’s trouble shooting after installation
4. 1000㎡ spare parts warehouse ensure quick delivery within 12hours for urgent spare parts replacement
